While driving you wear a seatbelt to ensure safety similarly, while selecting the best quality Mammography Machine for Hospital you should select the right diagnostic equipment. It is a critical decision that needs to be made for any healthcare facility. There are many women all around the world who have breast cancer, which has become one of the most prevalent health concerns globally. Mammography machines are a necessity for early detection and for saving many lives.
This following guide will tell you about the landscape of mammography technology, from top Mammography Machine Manufacturers in India to the technical factors that should be considered while purchasing.
What Is a Mammography Machine?

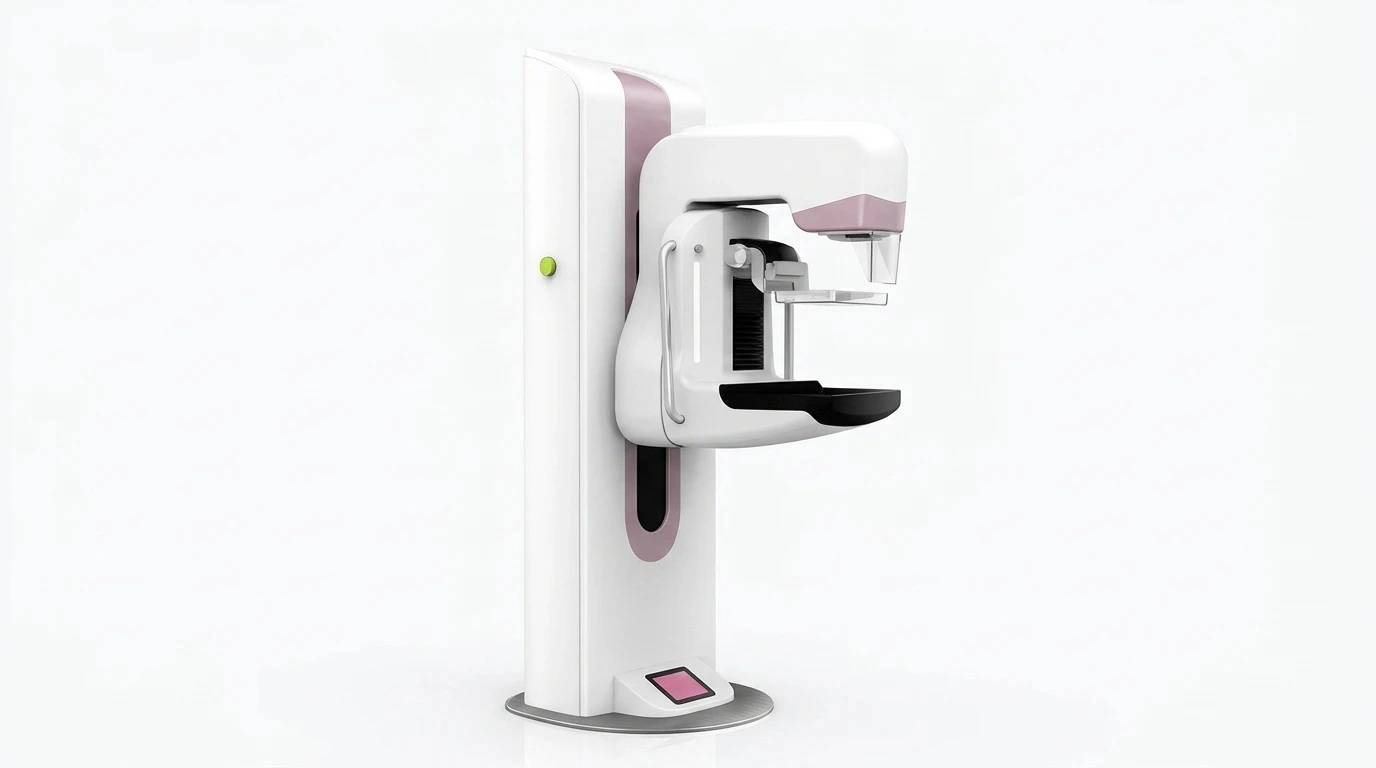

This medical device uses low-dose X-rays to visualize the internal structure of the breast. This machine is designed in such a way that it helps to detect tumors, microcalcifications, and other abnormalities that may not be seen during a normal physical exam.
A Hologic Mammography Machine consists of a gantry with an X-ray tube and a compression paddle which helps to spread tissue to prevent blur, ensures clear, high-resolution images while lowering the required radiation dose, and keeps the breast still.
Fun Fact 1: “Mobile Mammo: "Mammomobiles" or mobile mammography units are equipped with fully functional, high-tech X-ray machines to bring screenings to rural or underserved areas.”
State the Types of Mammography Machines
The following are the types of mammography machines:
Film-Screen Mammography
This method is known for its traditional way of using it for X-ray film to capture images. Due to cheaper quality, it is usually used in some parts of the Indian rural areas, as it is affordable for them.
Digital Mammography
From a traditional to digital method, using advanced technology, a Digital Mammography Machine developed to use digital systems that turn normal X-rays into the electronic images of the breast. It provides clear, improved images that can easily store and transmit. Due to digital technology, it provides results faster compared to traditional machines with better image quality, especially women with higher breast density. The benefits of this machine are getting results that are faster and easier and the ability to zoom or adjust contrast for better diagnosis.
3D Breast Tomosynthesis
This machine has another name: digital breast tomosynthesis, as this machine is known for being the most advanced form of mammography. It helps to provide the layered images of the breast, which decreases the false positives; thus, it helps to provide better diagnostic in an accurate manner.
Analog Mammography
This is the traditional method to capture images on X-ray film. It is a cost-effective way, later replaced due to the slower processing time and the inability to manipulate images digitally.
Portable Mammography Units
Here, portable versions of the Mammography Machine known for its compact design and mobile units that are used in remote health camps or community screenings. You may have seen them in Indian rural areas, where access to healthcare is limited.
While searching for a high quality Mammography Machine in India, make sure to check the certification, warranty and material used.
About Shelves Tech
‘In the field of industrial automation and healthcare solutions, Shelves Tech is the trusted and reliable name and was founded in the year 2013. The company delivers the best quality products and has great industry experience. The company offers a wide range of solutions, like linear accelerators, health ATMs, and advanced oxygen generation systems—all equipment that helps in healthcare system needs. Each product is designed according to the standard needs and with durability and accuracy for professional use in the long term. In the health care industry, Shelves Tech is expanding its presence. The platform also offers related products, like PSA oxygen plants, ECG machines, multipara monitors, etc. If you are thinking of investing in healthcare solutions, we are the best platform. You can easily connect with us to expand or start the business. Shelves Tech is committed to providing the best automation and electrical solutions to its customers.’
Did you know? “Quality Standardization: Between 1986 and 1992, laws such as the Mammography Quality Standards Act (MQSA) in the US were enacted to ensure dedicated machines and regular quality checks.”
What Are the Advantages of a Mammography Machine?
Here are the advantages of a mammography machine:
- They serve as a life-saving tool.
- It helps doctors to view breast anatomy using low-dose X-ray imaging.
- It easily evolved from traditional to digital machines.
- It provides clearer images with sharper contrast.
- These machines help in early detection.
- It helps to reduce call backs.
- It provides a high construct for dense breasts.
- It makes workflow efficiency easy.
- This type of machine makes sure that patients feel zero discomfort.
- It helps to increase data storage.
Many hospitals choose digital mammography machine to provide the best and faster results for early detection of cancer.
Here is another blog you might be interested in.
Explain the Working of a Linear Accelerator
Technical Specification
The following table talks about the technical specification of the mammography machine.
|
Specification |
Mammography Machine Details |
|
Model Type |
Digital Mammography System / Analog Mammography (Optional) |
|
Technology Type |
Full-Field Digital Mammography (FFDM) with Flat Panel Detector |
|
Application |
Breast Cancer Screening & Diagnostic Imaging |
|
X-Ray Tube Type |
Molybdenum / Rhodium Dual Target |
|
Anode Angle |
16° ± 2° |
|
Focal Spot Size |
0.1 mm (Small Focus) / 0.3 mm (Large Focus) |
|
Tube Voltage (kV) |
20 – 35 kV (Adjustable) |
|
Tube Current (mA) |
5 – 200 mA (Programmable) |
|
Automatic Exposure Control (AEC) |
Yes (Multi-Point Sensor) |
|
Detector Type |
Amorphous Selenium (a-Se) / CsI (Optional) |
|
Detector Pixel Size |
70–100 μm |
|
Image Resolution |
Up to 20 lp/mm |
|
Field of View (FOV) |
24 × 30 cm / 18 × 24 cm (Selectable) |
|
Compression System |
Motorized, Adjustable Compression Force (Max. 200 N) |
|
Compression Paddle Types |
Standard, Spot, and Magnification Paddles |
|
Magnification Factor |
1.5x – 2.0x |
|
Image Acquisition Time |
≤ 5 Seconds per Exposure |
|
Image Storage & Transfer |
DICOM Compatible / PACS Connectivity |
|
Display Monitor |
5MP Medical Grade Diagnostic Monitor |
|
Operating Modes |
Screening, Diagnostic, and Tomosynthesis (Optional) |
|
Tomosynthesis Angle Range |
±25° (for 3D Imaging, Optional) |
|
Exposure Time |
100 ms – 2 s (Auto Adjustable) |
|
Collimator Type |
Manual / Automatic with Light Field |
|
Patient Positioning |
Motorized Up/Down Column Adjustment |
|
X-Ray Beam Filtration |
0.03 mm Mo / 0.025 mm Rh |
|
Automatic Beam Control |
Yes, Based on Tissue Density |
|
Generator Type |
High-Frequency Generator |
|
Power Supply |
230V AC ±10%, 50/60 Hz |
|
Power Consumption |
5–10 kVA (Depending on Model) |
|
System Control |
Microprocessor / PLC Controlled |
|
Cooling System |
Forced Air Cooling |
|
Operating Temperature |
15°C – 35°C |
|
Dimensions (L×B×H) |
Approx. 1500 × 900 × 1900 mm |
|
Machine Weight |
Approx. 300–500 kg |
|
Safety Features |
Automatic Exposure Cut-Off, X-ray Leakage Shielding, Emergency Stop |
|
Certifications |
CE, ISO 13485, BIS Certified |
|
Mounting Type |
Floor Mounted |
|
Optional Features |
Biopsy Attachment, 3D Tomosynthesis Upgrade, CAD Software |
|
Software Compatibility |
DICOM 3.0, PACS, HIS / RIS Integration |
|
Applications |
Hospitals, Diagnostic Centers, Oncology Clinics, Women’s Health Programs |
|
Warranty |
1 Year Standard (Extendable Maintenance Contract Available) |
Understanding the Applications of Mammography Machines.
Here are the applications of mammography machines:
- Hospitals
- Clinics
- Diagnostic Facilities
- Screening Mammography
- Diagnostic Mammography
- Biopsy Guidance
- Research Centres
- Clinical Studies
Fun Fact 2: “Men Need Them Too: Mammography machines are used to diagnose breast issues in men, who account for a small but significant percentage of breast cancer cases.”
How to Select A Mammography Machine?
When investing in mammography machines, consider the following factors.
- Image Quality
- Clinical Parameters
- Radiation Dose
- Software Compatibility
- Space and Infrastructure
- Maintenance & Support
- Cost Effectiveness
- Manufacturer Support
While evaluating the Mammography Machine Cost, make sure to check all the above-mentioned factors that help in selecting the best quality mammography machine.
Did you know? “2000 (FDA Approval of Digital): The Food and Drug Administration (FDA) approved the first full-field digital mammography system (GE Senographe 2000D).”
Why Choose Shelves Tech for Mammography Machine?
Here are some of the reasons:
- They provide smart, affordable, dependable solutions for early detection and better treatment outcomes.
- They provide In-house R&D ensuring constant innovation.
- They enhance the integration of smart imaging technologies.
- They follow ISO and CE-certified quality standards.
- They have user-friendly designs.
- They ensure minimal maintenance requirements for a machine.
- They commit to improve women's health across India.
Here are the most asked questions related to mammography machines.
FAQs
Q.1 Who invented the mammography machine?
In 1965 Charles Gros, French radiologist, introduced the Senographe, the first dedicated mammography machine.
Q.2 Who provides the best mammography machine in India?
Shelves Tech provides the best mammography machine in India. They ensure trust, accuracy, and compassion in every product they provide.
Q.3 How to maintain mammography machines?
Here are some ways to maintain mammography machines:
- Regular cleaning of imaging plates and components.
- Proper calibration of X-ray output.
- Routine inspection of compression systems.
- Periodic software updates and system diagnostics.
Q.4 What safety precautions need to be followed while working with mammography machines?
The following are safety precautions need to be followed while working with mammography machines:
- Always use proper shielding.
- Check the correct positioning of the patients.
- Make a habit to check radiation levels.
- Follow operational guidelines strictly.
Q.5 Is there any age factor for patients who can use mammography screening?
Particularly not, screening is generally recommended for women above a certain age, depending on medical guidelines and individual risk factors.
Q.6 Is it important to do regular mammograms?
Regular mammograms help to detect abnormalities early, increasing the chances of successful treatment and better health outcomes.
Conclusion
Mammography machines are used in different places with the same goal: early detection with clear images to save lives. Advanced technology has made the screening process easy and fast. Many hospitals adopted it and started to follow. These machines help to increase workflow efficiency and make sure that patients do not feel discomfort during diagnosis. Shelves Tech provides the best quality machines with faster operations which make Shelves Tech the right choice.
If you are thinking of investing in mammography machines, then Shelves Tech is the best platform. The brand also offers portable labs, health ATMs, multipara monitors, lab furniture and much more. Contact us now.
